Sea Dredging Vessel for Offshore Sand Mining Project

Name: Sea Dredging Vessel for Offshore Sand Mining Project
Brand: yongsheng
Price: 1450000 USD

Wholesale Sea Dredging Vessel for Offshore Sand Mining Project from china suppliers

Brand Name : yongsheng

Model Number : csd600

Place of Origin : china

MOQ : 1

Price : 1450000usd/piece

Payment Terms : T/T,L/C

Supply Ability : 100piece/Year

Delivery Time : 60 work days

Packaging Details : Container

Customized : customized

Condition : new

Warranty : 1 year

Water Flow : 6000m3/h

Solid Capacity : 900cbm/h

Max.Dredging Depth 45° : 15m

Discharge Distance : 2000m

Dredger After Assembly : 48*9.4*2.8 M Length*Width*Depth

Dredger Structure : Can Be Assembly in Working Site

Average Draught : 1.8m

Diameter Discharge Pipe : 600mm/24inch

Total Power : 2511kw

Main Engine : 1715 Kw

Auxiliary Engine Power : 746kw

Generator : 50kw

Hydraulic Cutter Powerr : 440kw

Contact Now

Sea Dredging Vessel for Offshore Sand Mining Project

The hull uses dismantle and box-like structure, which equipped with horizontal shifting devices, cutter ladder lifting devices,
spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices.
Generally,it has functions on dredging, conveying and discharging of mud and sand. It can produce certain
amount of vacuum by the centrifugal pump.
The dredge pump is driven by the main diesel engine through the reducing gear box.
The Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting of the whole
dredger.
Generator sets supplies electricity for lighting and emergency use when it doesn't working.
Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.
The dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.

Sea Dredging Vessel for Offshore Sand Mining Project

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

Sea Dredging Vessel for Offshore Sand Mining Project

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?

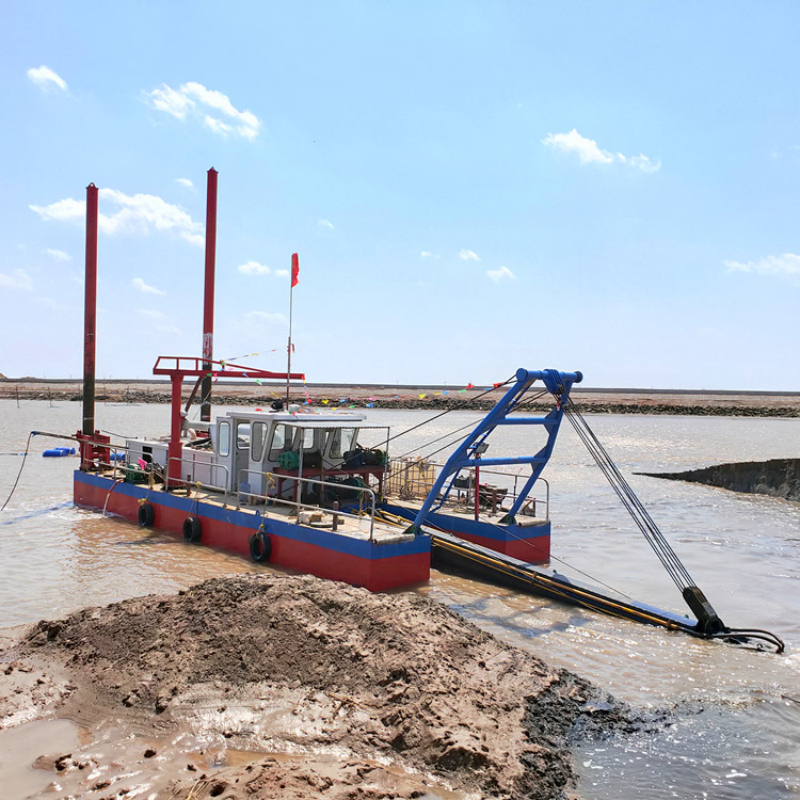

Sea Dredging Vessel for Offshore Sand Mining Project Images
